Design your steel-framed building in 3D
Garden sheds, sheds, garages, cabins and granny flats. Set the size, roof, doors, windows and rooms, check it in 3D, then send it to Steel Frame Solutions. Most quotes are sent within one business day.

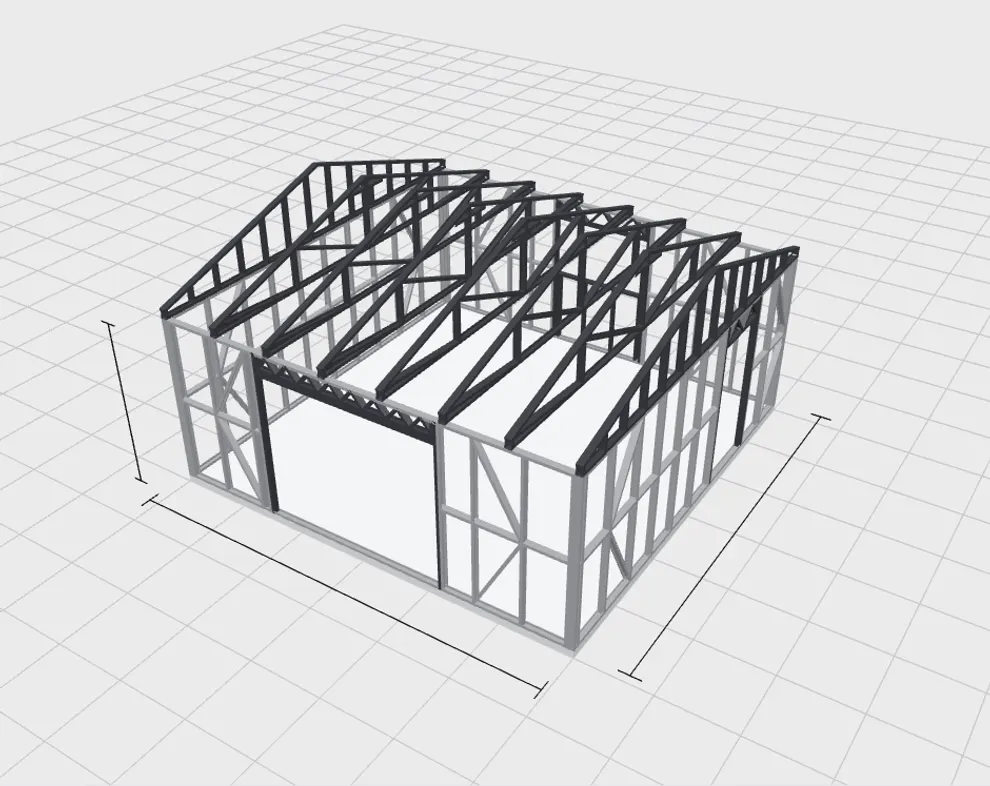

- Garage
- 6.0 × 6.0 m
- … m²
- 2,425 mm walls
- Gable 17.0°
- 2 doors · 1 window
Loading the 3D view…No obligation. Most quotes are sent within one business day.
The designer's results are an illustration, not an engineered design. Final framing is designed and engineered before anything is made.
From your design to your estimate
- 01
Pick a building
Start from a garden shed, shed, garage, cabin or granny flat. Each one opens with a sensible starting design.
- 02
Shape it
Set the size and shape, wall height, roof type and pitch, eaves, doors, windows and internal walls. Check it in 3D or drag things around in the plan.
- 03
Send it to us
Add your contact details and site address. We get your design and a framing take-off worked out from it.
- 04
Get your estimate
We check the design and email your estimate, with a link that reopens your design in 3D.
Frame designer questions
Does the Frame Designer show a price?
No. The designer shows your building, its sizes and room sizes. When you send it, the Steel Frame Solutions team checks the design and works out the framing, then emails your estimate. Most quotes are sent within one business day.
What can I design?
Garden sheds up to 3.6 × 3.6 m with a mono-pitch roof, sheds and garages with roof spans up to 12 m, cabins, and granny flats up to 70 m² of floor area. Rectangles, L-shapes and notched rectangles are available for sheds, garages, cabins and granny flats.
Which roof types are available?
Gable (with a gable or hip at each end), mono-pitch, scissor trusses for a raked ceiling, and webbed rafters up to 9 m wide. Garden sheds use a mono-pitch roof panel.
Is my design engineered?
The designer follows our framing rules, and it lists engineering notes as you go. Roof trusses and rafters always need specific engineering design, as do tall walls, wide openings and large eaves. The final framing is designed and engineered before anything is made.
Do I need a building consent?
That depends on the building, its size, its use and your site. The designer doesn't decide consent. Your council has the final say.
Can I change my design after I send it?
Yes. The confirmation email has a link that reopens your design in the designer. Make your changes and send it again, or reply to the email with what you'd like to change.
What does the designer cover?
The light gauge steel frame: wall frames, roof trusses or rafters and, for cabins and granny flats, optional steel floor panels. If you need anything else, add it to the notes when you send your design.
